Description
Steering kit with helm, compact cylinder, and oil, 20′ tube. Built on the same tradition as SeaStar Outboard Steering, BayStar Systems are designed for low-torque outboard, inboard/outboard, and other low-speed displacement vessels. The systems are easy to install with cut-to-length tubing, and are available in complete kits or by individual components.

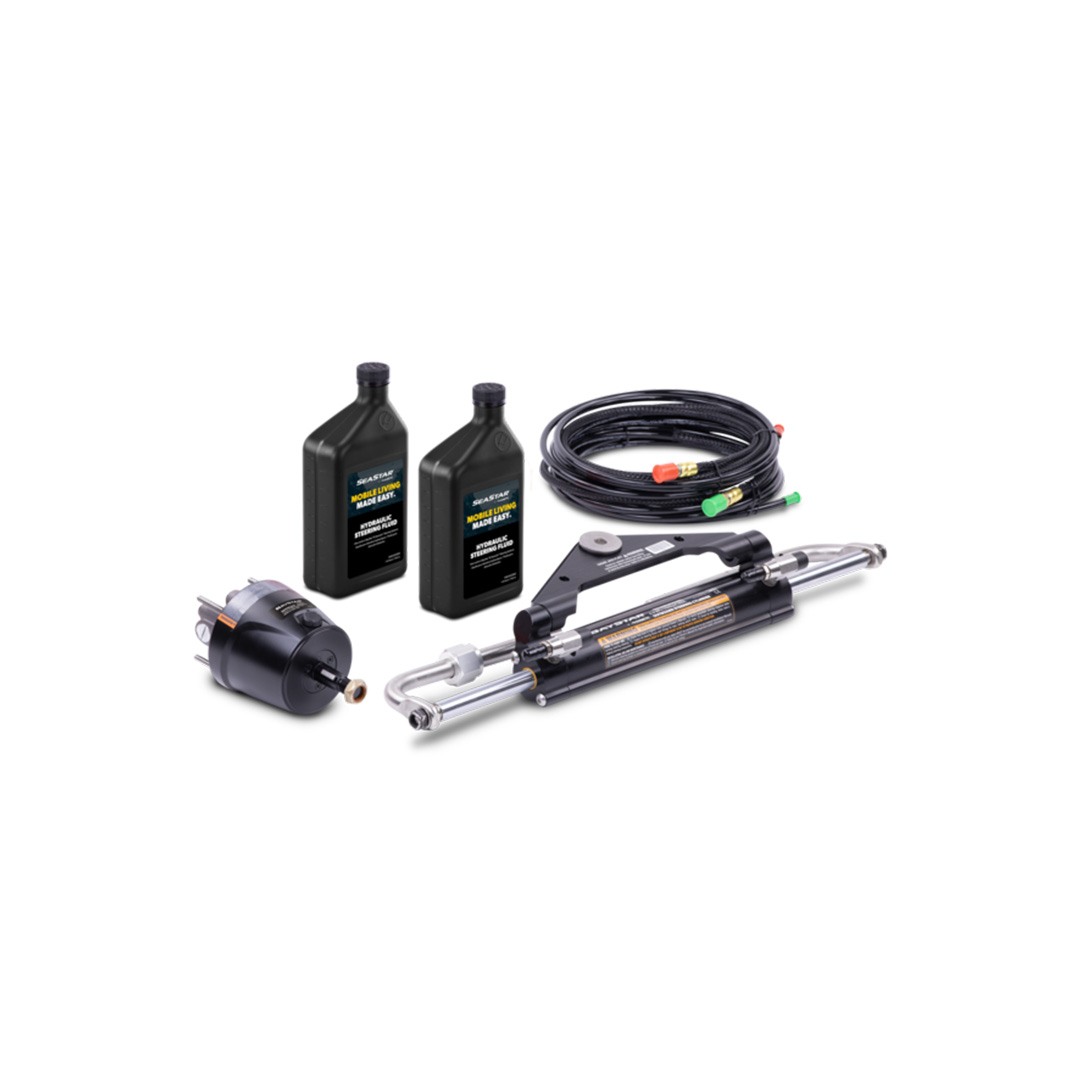

Kit includes Dometic’s BayStar Helm, BayStar Outboard Cylinder rated to 150hp, and 20ft of SeaStar hydraulic oil and cut-to-fit hydraulic tubing. Not recommended for use with high performance engines.
Depth 7.94″. Weight 22 lbs. Operating temperature -18°C to 71°C. Actuator stroke length 8″. Power rating 150hp. Maximum pressure 1000psi. Fluid displacement 4 cubic in. Wheel diameter 28″. Shaft diameter 0.63″. Mount type: Front Mount. Colour black.
